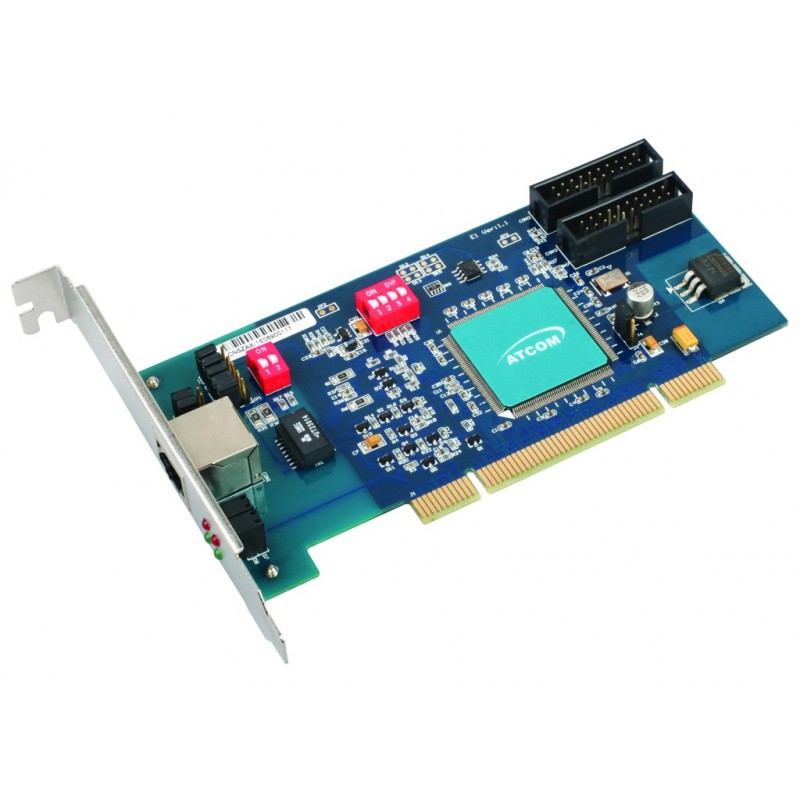

PhonicEQ TE100P 1 Port T1/E1 ISDN PRI Card

AX1E offers unprecedented density and value in the telephony arena. Terminating one T1/E1 interface in a single PCI form-factor device, the TE100P harnesses the benefits of standard PC hardware and the open source Linux operating system.

AX1E supports industry-standard telephony and data protocols, including both the CAS, CAS R2, Robbed Bit Signaling and Primary Rate ISDN protocol families for voice, as well as PPP, Cisco HDLC, and Frame Relay data modes. The card is fully supported by the Asterisk Open Source PBX and can drive both line-side and trunk-side interfaces, including supporting advanced call features. In addition to conventional telephony, Asterisk extends the strengths of the TE100P to provide Voice over IP and ultra low-latency TDM over Ethernet for greater efficiency and flexibility.

Target Applications:

Packet voice gateways and switches

Calling card services

One number services

Messaging services

Conferencing

Customized and web telephony Voice/data integration

Future-proof PBX ISDN Remote Access Server

PRI/PRA Switch Compatibility:

National (NI1)

EuroISDN (30B+D)

Network or CPE

RBS Voice Modes:

A-law, Mu-law, and linear modes supported, CAS, R2 CAS, E&M, E&M Wink, Feature Group D, Groundstart (FXO and FXS), Loopstart (FXO and FXS) with optional disconnect supervision

Data modes:

SyncPPP (both Fixed and Dialup), Frame Relay, Cisco HDLC

Hardware and Software Requirements:

2.4 GHz Pentium IV or better with at least 256 MB of RAM Available

one 3.3V or 5.0V PCI slot Linux 2.4/2.6 kernel
