Parabel Quasar MEE E1, 2 Ports PCI View larger

Parabel Quasar MEE E1, 2 Ports PCI

New product

Two E1 ports
PCI  interface
Embedded TDM switch
DMA data transfer
Zaptel (dahdi) optimized structure of PCI frames
Linux Asterisk driver
Linux configuration utility
Low profile formfactor (for PCIe)
Work with any DAHDI-compatible PBX
Asterisk, CallWeaver, Yate, FreeSwitch

More details

31 185 RUB

More info

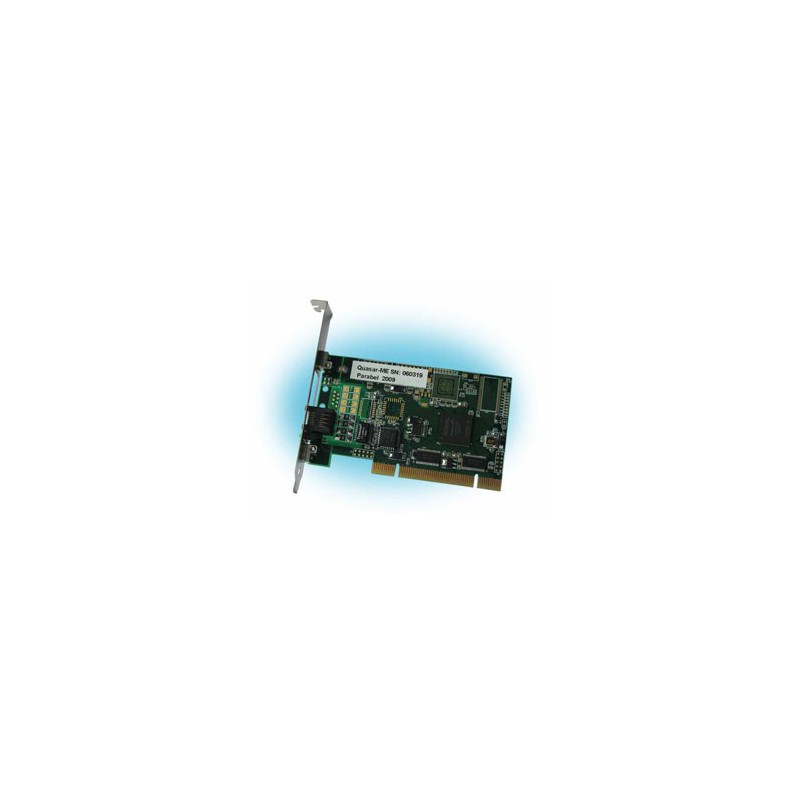

Quasar-mini is a two-channel E1 interface card developed for use in  PCI slots. Its primary functions are to attach the Asterisk software PBX to E1 channels, to transfer data over E1 trunks, and to analyse E1 frames.
Technical dataE1 attenuation 0..-40 db (port 0), 0..-6 db (port 1)
Coding AMI or HDB3
E1 line clocking Master or slave
E1 multiframe CRC4, CAS
Switching Embedded TDM switch 64x64 slots
Bus interface PCI 32 bits, 33 Mhz, PCI master capable
Software support Configuration utility for Linux
Zaptel (dahdi) driver for Asterisk
